Fitting a tender, outboard and davits to MV Destiny

As with many things boat related, there is a need for compromise when choosing a tender. What type, size and material, what size of motor and how to secure it to your boat. I wanted something durable and of a suitable size to be able to ferry us ashore and able to carry all our victualing when we start our cruising in the Med. It also needed to be of a quality that would withstand the harsh UV environment. We also wanted it to be as light and able to withstand being pulled up onto a beach without damage. Having spoken with Neptune Marine regarding the largest practical size and after much consideration I decided on an AB Lamina 8AL - aluminium rib, 2.56m long and capable of carrying a 6HP motor and 4 people. We  would have liked something bigger but a compromise on size meant we could still have access to both sides of the bathing platform while not having the tender or outboard overhanging the sides of the boat. The choice of motor was simple in terms of size. The max the tender is rated for is 6HP. Having spoken to a number of suppliers we opted for the Suzuki DF6AS. In terms of davits, the space and shape of the bathing platform and transom limit the options. It was important for us to be able to remove the davits when not in use and after trolling the internet we opted for the Hurley H2O system. These are not cheap but Hurley seems to have the market covered and, as far as we could see, no-one else came close to their simple, practical, durable and sturdy design. All we had to do now was fit them!

This was not a straight forward job. The main reason being that a backing plate had to be fitted to support the davit brackets. However, the swim platform is hollow and the davits needed to be fitted 1 metre from the opening of the cavity. My arms are only 0.7 metres long and besides, access to the cavity is from under the master bed, where access is restricted by pipes, cables steering gear, ducting and a wood pillar that supports part of the bed. This looked close to impossible so I contacted Elling. They said this could be done and when I asked how, their helpful response was "we employ small people"! At least I knew it was possible. So with this in mind me and Bruce - my very helpful and practically minded friend whose favourite saying is "everything is doable" - set about finding a solution.



First we got some backing plates made up with the nuts welded on - bottom item in picture left. I then got a long piece of wood and drilled holes to fit the spacing on the nuts - top item in picture left.

This allowed us to secure the backing plate onto the wood and thread it into the cavity while lying on top the batteries and crammed into a very tight space. After a bit of giggling around the plates were fitted. No small people were used during the completion of this procedure.









The video should help you to visualise our predicament.

Davit fitting bolted in place with a healthy dose of sealant/adhesive applied.

Both plates fitted

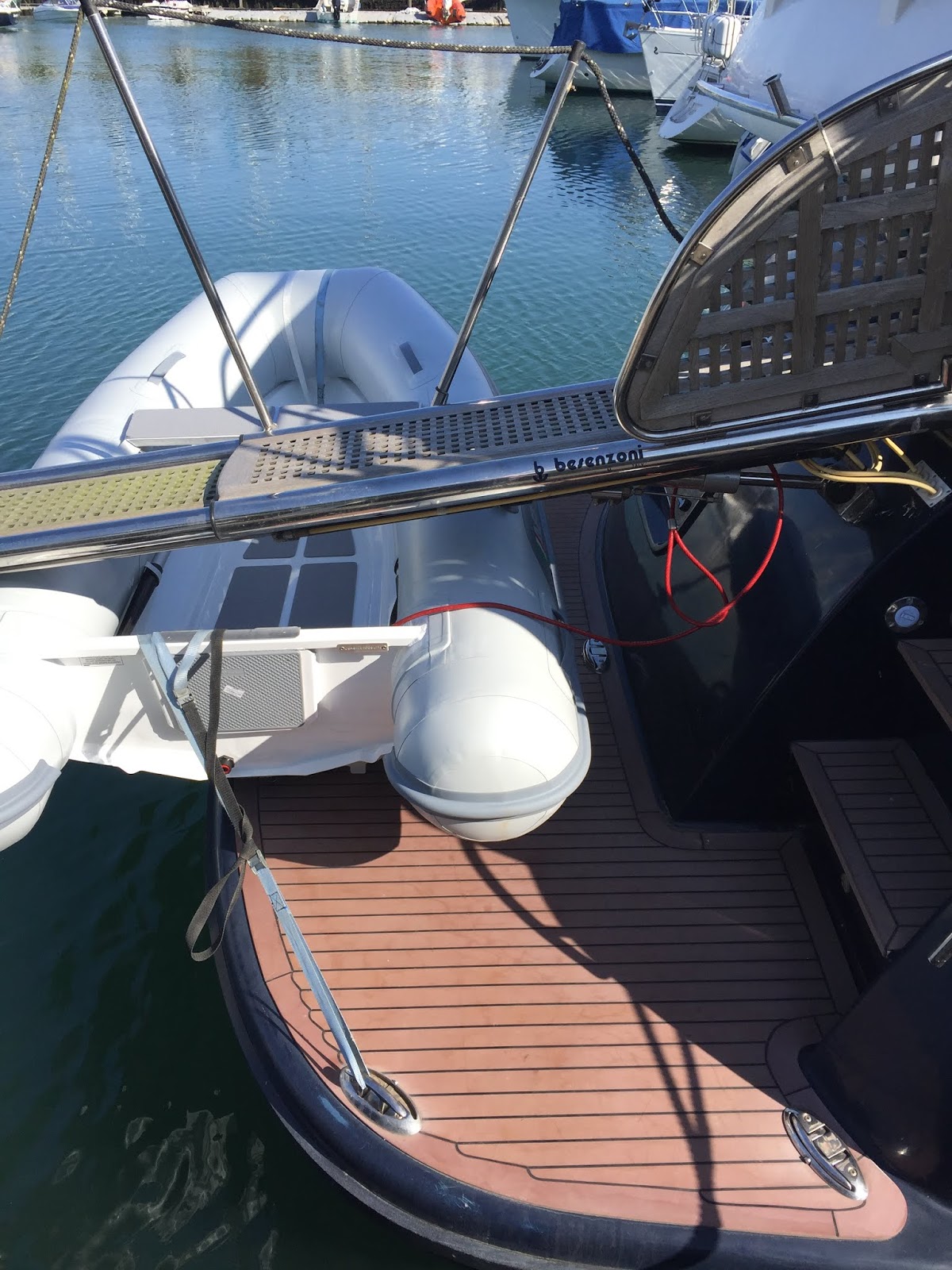

The final result with dingy sitting on davits.

I had been warned that lifting the tender onto our swim platform which sits 450mm above the water was at the limit of what the davits are designed for.  If these young ladies can do it.......... (https://www.youtube.com/watch?v=JSoEBj9Px0A&feature=youtu.be). It proved to be very doable for me and Jane. If all else fails we could always revert to using the passerelle.

I'm now in the process of breaking/running-in the motor. Can't wait to see how it all performs once I'm allowed to wind her up past idle!

BREXIT- oh no!

Brexit
Like most people in the UK, and probably the EU, we have had enough of the interminable Brexit debates. However, for recreational boat owners Brexit poses its own challenges. The upshot of this is that we've been watching closely the numerous deadlines that have come and gone because leaving without a deal could have significant financial implications depending on where your boat is lying. As a result, we've been on standby to dash across to Holland should a "no deal" be on the cards. Let me explain.

Until recently the RYA (www.rya.org.uk), which has been doing a great job of lobbying government on behalf of the UK's boating community and has been my main source of information regarding the implications and consequences of Brexit, advised that information received from...

"..the European Commission ... indicated that in the event of a no deal Brexit, boats lying in the EU27 at the time of Brexit would retain Union status and boats lying in the UK at the time of a no deal Brexit would lose Union status and have the status of UK goods."

This meant, in the event of a no-deal Brexit, that we would have to decide whether to have the boat in the UK and thereby keep its UK VAT-paid status but loose is EU tax-paid stays, or have the boat in the EU27 and keep EU tax status but loose the ability to keep the boat in the UK without having to repay tax. This caused some angst. We are planning to take the boat to the Med next year so it would be nice to have the tax paid there; however, we would probably bring the boat back to the UK to sell it when the time comes so it would be good to have tax paid here! Also, being a Dutch boat well suited to the European waterways we feel the ability to sell her in Northern Europe would be advantageous. We were caught between a rock and a hard place by EU bureaucracy

However, some sense has since prevailed and the RYA...

"...asked HMRC on behalf of RYA members, if boat owners would be able to bring them back to the UK without VAT and import duty (if applicable) becoming payable.

HM Government’s response is that it is still working towards a deal with the EU, but that plans have been made to replicate Returned Goods Relief (RGR) into domestic law in the event of a no deal.

RGR allows those resident in the UK to return with their belongings (including pleasure boats) to the UK without paying customs duty or VAT as long as the items have not been changed since their departure and follow the guidance given in the Notice 236 Returned Good Relief.

The UK Government has undertaken that RGR will be available in respect of UK pleasure craft not moored in the UK on EU exit day. They may return to the UK after the exit and be subject to Returned Goods Relief as long as the person responsible has evidence that the VAT was paid on the purchase of the boat in either the UK or the EU."

In effect, this means that as long as the boat is in an EU27 country on the date we leave it should be viewed as having tax paid in the UK and the EU - RESULT! This is not the whole story and anyone affected by this should check with the RYA/government website for the additional details and developments.

The way Brexit talks are(n't) progressing, we should be well and truly ensconced in the Med by the time we leave! Watch this space.

Date: April 2019

Seafood Extravaganza

The tides were right so we decided to take a trip to West Mersey and indulge in a seafood fest at the Company Shed.  Although the day was overcast, the wind was calm and we zipped along at just over 9 kts, assisted by about a knot of tide. There is no marina on Mersey Island so we moored on a buoy in the river and called Lady Grace - the ferry boat - skippered by a delightful and ebullient lady who took us ashore.

If you're ever in the area the Shed is a no frills establishment that serves amazing seafood. Oysters from the river, crab, lobster, mussels, prawns etc, all beautifully fresh and tasty. It's worthwhile taking your own bread and choice of beverage. The crab was one of the best I've ever tasted. Take a look at their website - (http://thecompanyshed.co) - it is correct. There is not ".uk" at the end.

We returned at low tide to our marina where they had been dredging the entrance. Just a as well. The spring tide left only 0.2m under the keel. A great day out. I'll get better at taking supporting pictures as the blog develops!

Sliding Roof - Doesn't!

I decided to open the roof to clean and lubricate the inflatable seal which had been sticking and preventing the roof from sliding forward. After a couple of unsuccessful attempts I could hear the motor running but got no movement of the roof. Diagnosis - the belt had broken. Having manually open the roof my fears were confirmed.

The new belt duly arrived from Elling

The belt is attached to the roof by a metal plate secured by the 4 bolts in the picture below. Belt tension is adjusted by a bolt in front of the wheel on the left of the picture. Access is limited which resulted in me making a bespoke 10mm spanner.

After cleaning the gully which houses the belt it was a fairly simple, but fiddly, job to fit the belt and adjust the tension.

All done and working perfectly.













Canvas Renovation
When we bought the boat we knew that the canvas covers surrounding the rear deck had to be re-stitched. UV had taken its toll and the seams were coming undone. Mother Nature had prevailed and an interesting green slim had evolved between the fabric layers where the stitching has failed.

Having removed the lacing that held the panels in place I took the panels home, cleaned them throughly and go to work with the sowing machine.

 I'm very pleased with the results.






Tender etc
We've decided what size and type of tender, outboard and davit system we will be using on Destiny and will report on this in a later blog.
